Full Description

Overview

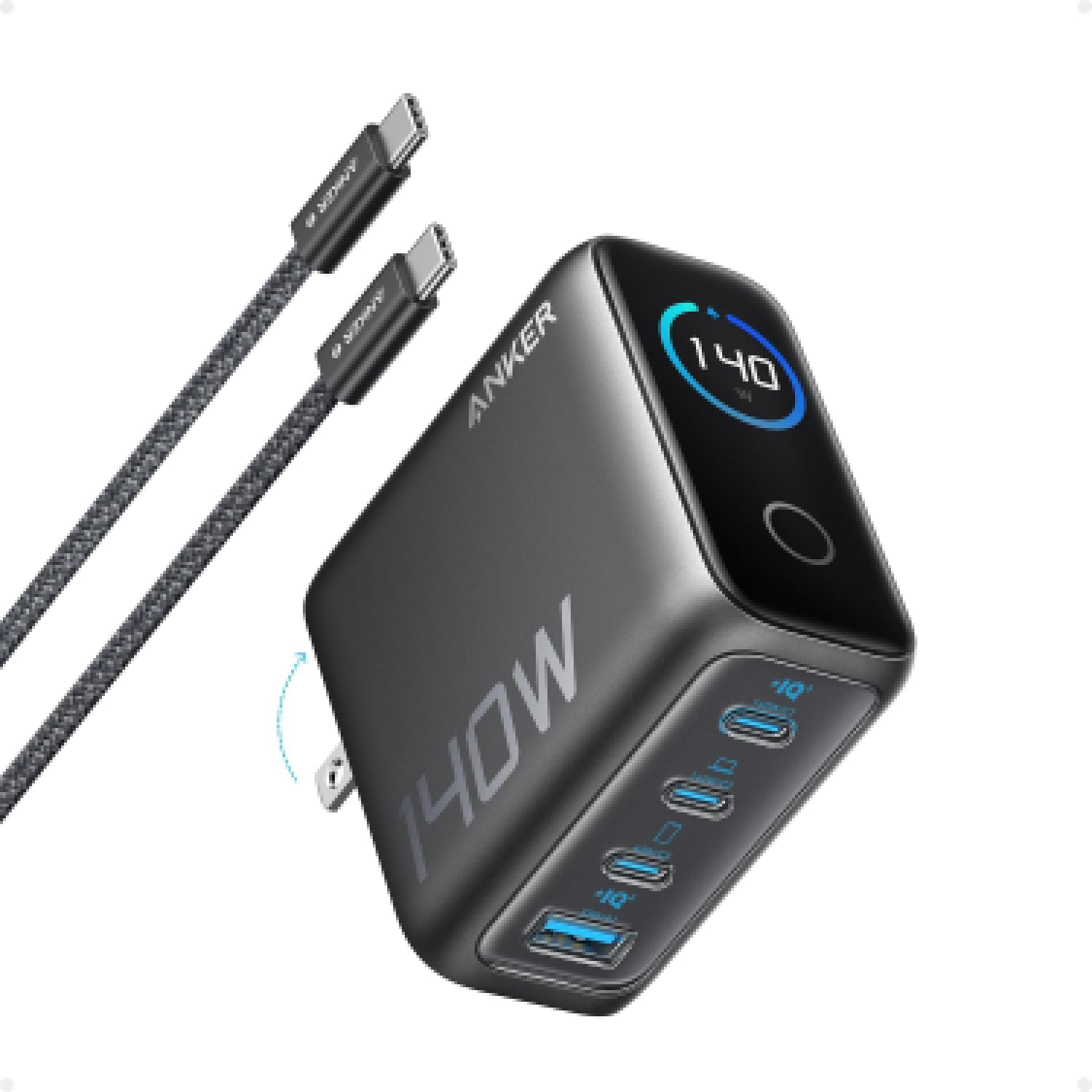

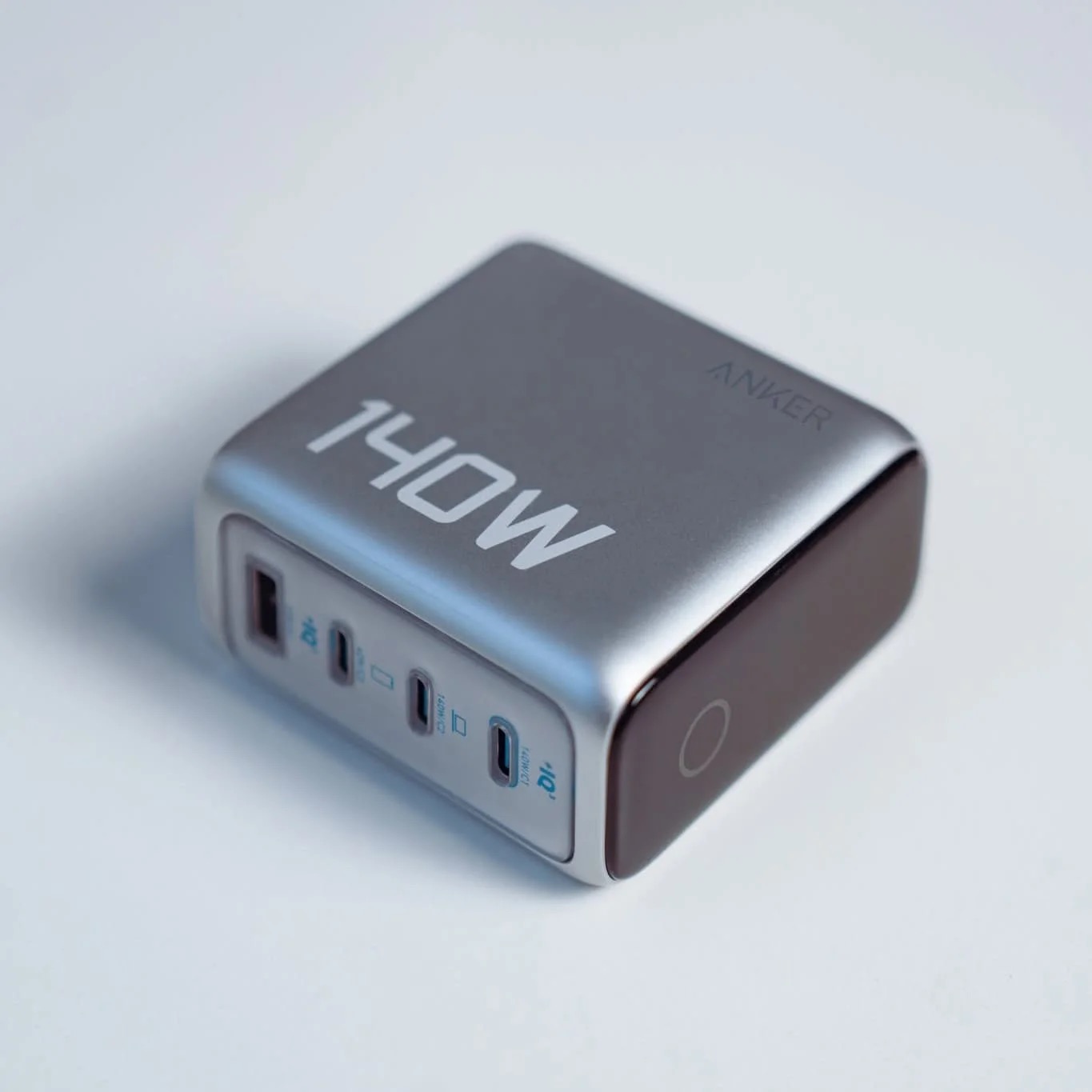

The Anker Zolo 140W Charger (Model A2697 / B2697) is a robust, travel-friendly GaN charger that offers high-speed, multi-device power delivery. It includes three USB-C ports and one USB-A port. Two of the USB-C ports support up to 140W (via PD 3.1), while the third handles up to 40W and the USB-A port up to 33W.

Key Specifications

1. Total Output: 140W max
2. Port Configuration:
3. USB-C1 & USB-C2: 9V/3A, 15V/3A, 20V/5A, or 28V/5A (up to 140W each)
4. USB-C3: up to 40W
5. USB-A: up to 33W
6. Simultaneous Outputs Examples:
7. USB-C1 + USB-C2: 70W + 70W
8. USB-C + USB-C3: 100W + 40W
9. USB-C + USB-A: 100W + 33W
10. USB-C1 + C2 + C3: 65W + 45W + 30W
11. USB-C1/C2 + (C3 + A1): 100W + 24W
12. Input: 100–240V AC, 2.6A max
13. Dimensions / Weight:
14. Size: 69 × 69 × 36 mm
15. Weight: ~275 g (some sources also note ~295 g)
16.


Design & Key Features

1. Smart Display: Integrated LCD shows real-time power usage per port and temperature. When idle, a charming emoticon appears.Display orientation is adjustable via touch/long-press controls.

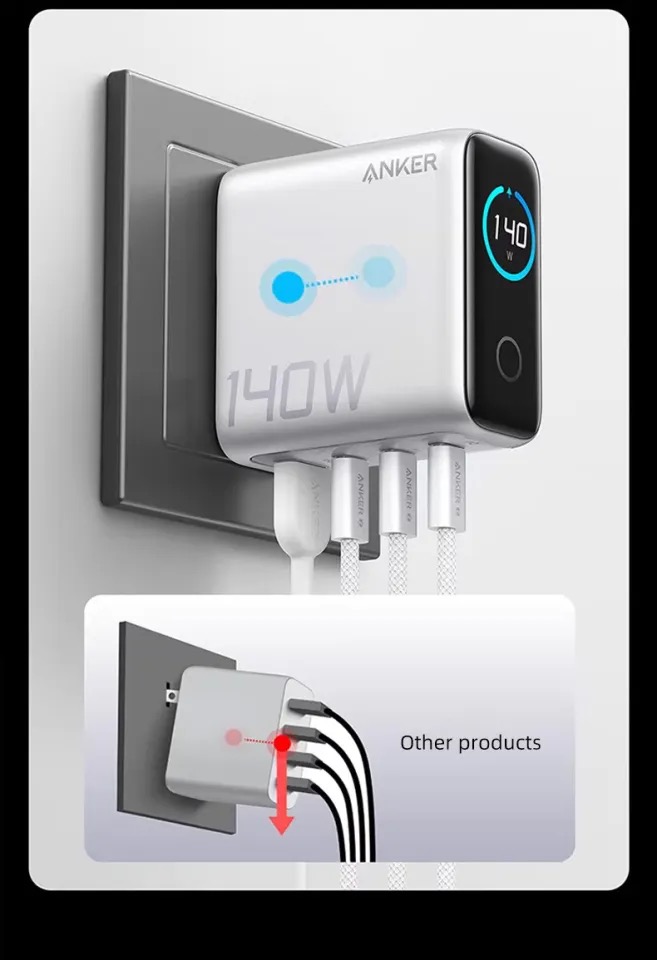

2. Port Placement: All ports are located on the underside, improving balance and reducing the chance of the charger falling out of sockets.
3. Safety & Cooling: Built-in thermal sensors and ActiveShield technology intelligently throttle output to prevent overheating.
4.


Real-World Performance

1. Reddit feedback indicates that while the charger can hit 140W, it begins throttling after about 30–40 minutes (dropping to ~100W or ~120W) as a cooling measure.
2. This dynamic behavior may go unnoticed during everyday use, such as charging laptops like the MacBook Pro 16″, which self-throttle power draw anyway.
3. Some users note the charger feels heavier and gets hotter compared to other Anker models.
