📄 Full Description

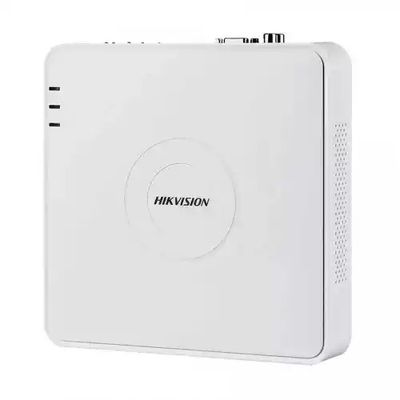

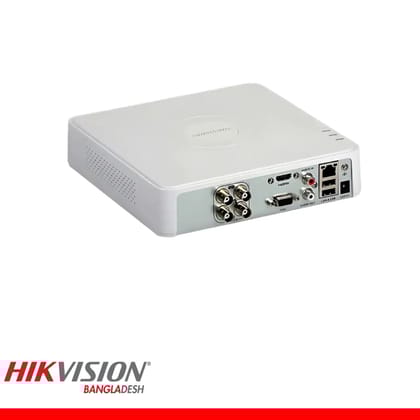

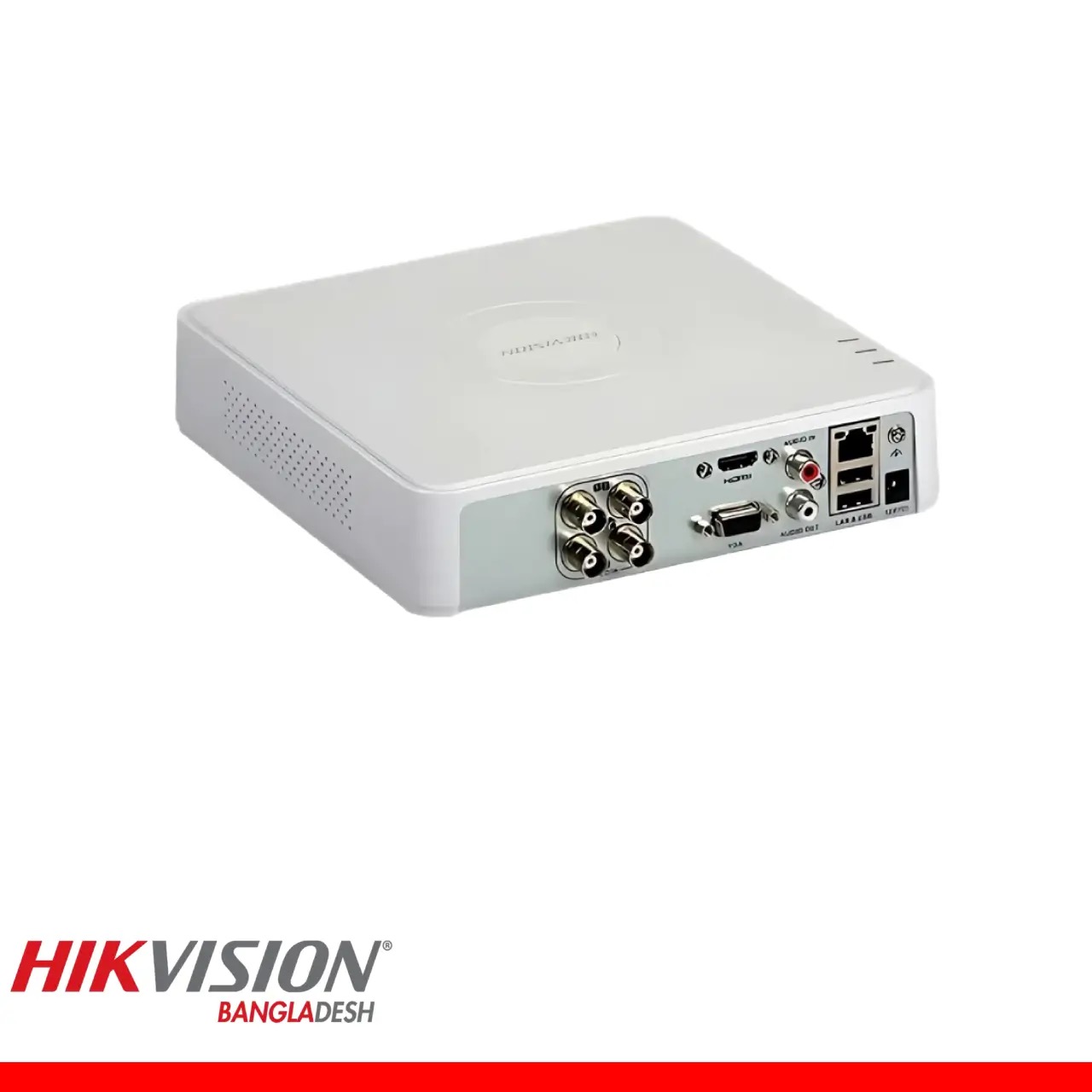

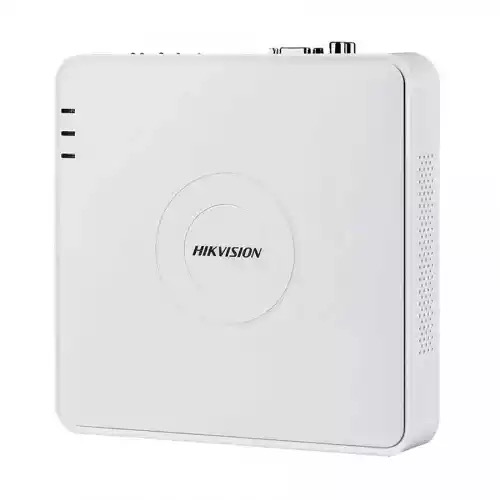

The HIKVISION DS‑7104HGHI‑ECO‑M1 (aka DS‑7104HGHI‑M1) is a mini 1U hybrid DVR designed for efficient surveillance:

Key Features

1. Video Inputs:
2. 4 analog channels (HDTVI/AHD/CVI/CVBS) via BNC, up to 1080p Lite or 720p/960p formats
3. Supports up to 5 IP camera inputs (up to 2 MP)
4. Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 for both analog and IP streams
5. Resolution & Frame Rate:
6. Main stream supports up to 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF at ~25/30 fps depending on region
7. Sub‑stream up to 4CIF@15 fps or CIF/QVGA at 25/30 fps
8. Smart Detection:
9. Motion Detection 2.0 uses deep‑learning to identify humans and vehicles, reducing false alarms and enabling quick search by object type

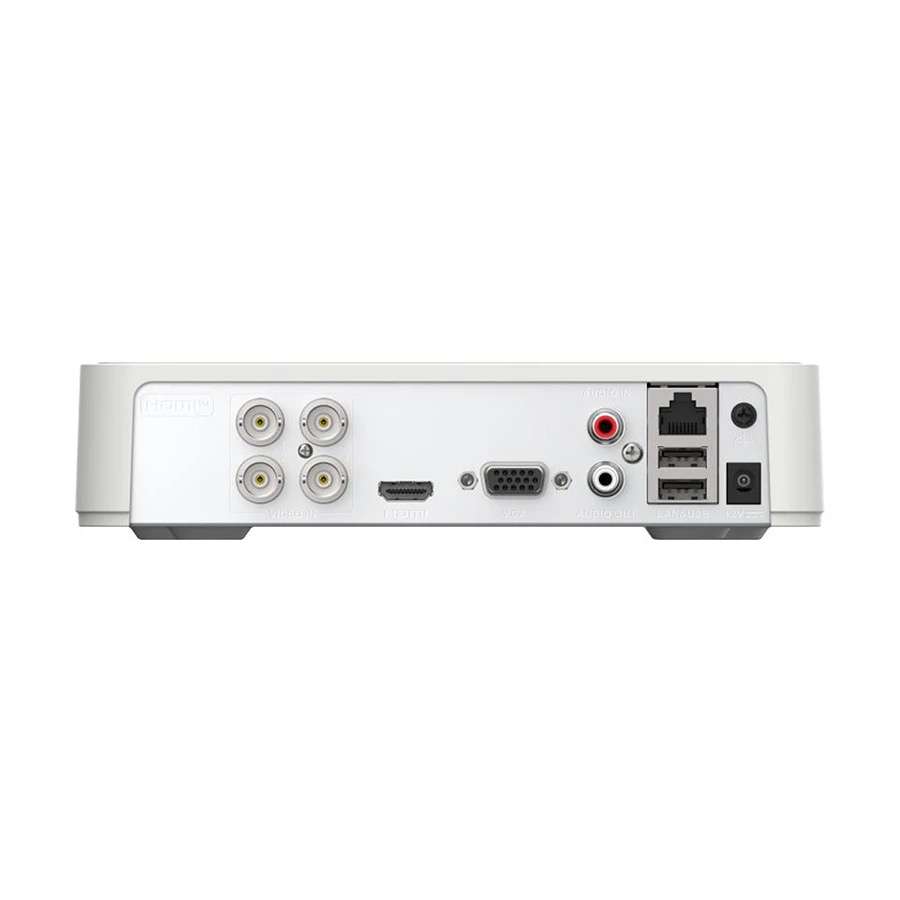

10. Video Output:
11. 1× HDMI and 1× VGA simultaneously, with up to 1080p output resolution
12. Audio:
13. 1× RCA audio input (plus four‑channel audio over coax)
14. 1× RCA audio output
15. Supports two‑way audio reusing the first input channel
16. Storage & Interfaces:
17. 1× SATA port, supporting a single HDD up to 4 TB
18. 2× USB 2.0 ports (rear panel)
19. Network:
20. 10/100 Mbps Ethernet, up to 32 concurrent remote connections
21. Supports TCP/IP, DHCP, PPPoE, DNS, DDNS, NTP, SMTP, UPnP, HTTPS and remote access via Hik‑Connect or PC/Web clients
22. Power & Consumption:
23. 12 V DC @ 1.5 A, consumption ≤ 16 W (without HDD)
24. Physical:
25. Compact dimensions: ~200 × 200 × 45–48 mm (W×D×H), weight ≤ 0.8 kg without HDD
26. Operating temp: –10 °C to +55 °C, humidity 10% to 90%
